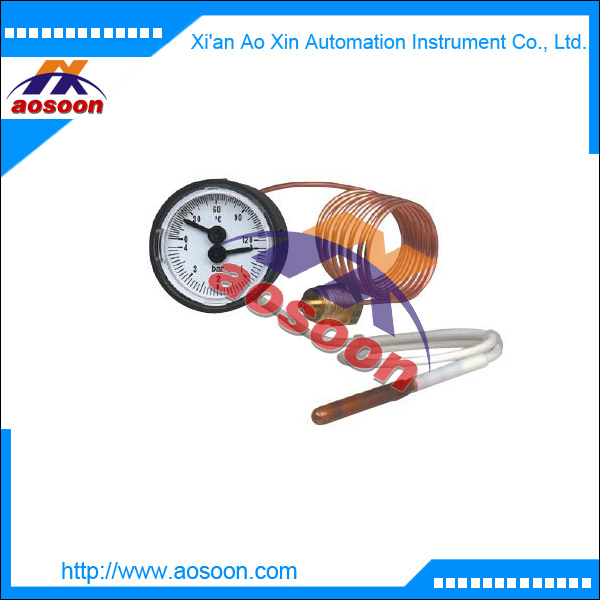

wika Thermomanometer for pressure and temperature measurement wika MFT

wika Thermomanometer for pressure and temperature measurement wika MFT

Applications

■■ Heating systems

■■ Combi-boilers with hot water and heating

Special features

■■ Combined indication for pressure and temperature

■■ With capillaries

■■ Scale range 0 … 4 bar, 0 ... 120 °C

■■ Reliable and cost-effective

Description

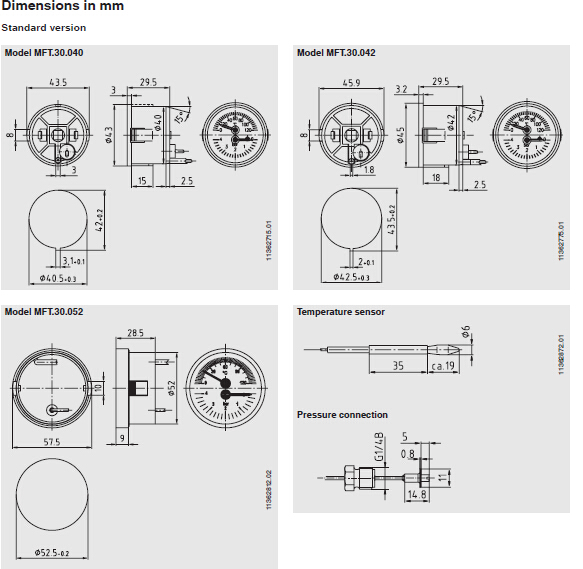

Nominal size in mm

40, 42, 52

Working ranges

■■ Pressure: Steady: 3/4 x full scale value

Short time: Full scale value

■■ Temperature: Full scale value

Measuring elements Bourdon tube, Cu-alloy

Connection Cu-alloy, back mount (BM)

■■ Pressure: Male thread G 1/4 B (rotatable) with capillary

■■ Temperature: Capillary, with sensor D6, plastic covered

Case Plastic, black, with front flange and lateral snap-fit provisions for panel mounting

Movement (pressure indication) Cu-alloy

Dial Plastic, white, black lettering

Pointer Plastic, black

Window Plastic, crystal-clear

Options

■■ Other scale ranges

■■ Capillary lengths (pressure, temperature), max. 5 m

■■ Capillary (pressure) plastic covered

■■ Other temperature sensor dimensions

■■ Other pressure connections

■■ Special scales
