wika Bimetal thermomanometer wika 100.01.80 wika 100.02.63 wika 100.10.80 wika 100.12.63

wika Bimetal thermomanometer wika 100.01.80 wika 100.02.63 wika 100.10.80 wika 100.12.63

Applications

■■ Heating systems

■■ Combi-boilers with hot water and heating

Special features

■■ Combined indication for pressure and temperature

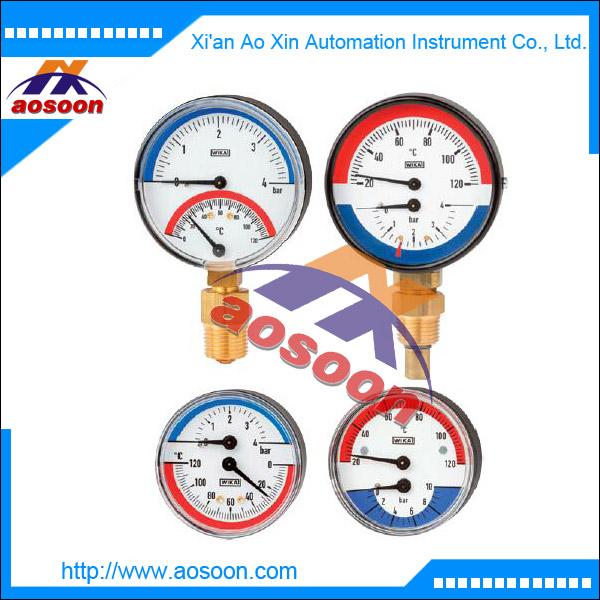

Model 100.01: At the top pressure, at the bottom

temperature, temperature scale bent downward Model 100.02: At the top pressure, at the bottom temperature Models 100.10 and 100.12: At the top temperature, at the bottom pressure

■■ Scale ranges to 0 … 16 bar, 0 ... 150 °C

Description

The thermomanometer with bimetal system is fitted directly at the measuring point via a stem. The valve allows the measuring instrument to be unscrewed without having to empty the heating system first. Due to the combination of a pressure gauge and a bimetal thermometer the instrument can be used flexibly in a wide variety of applications.

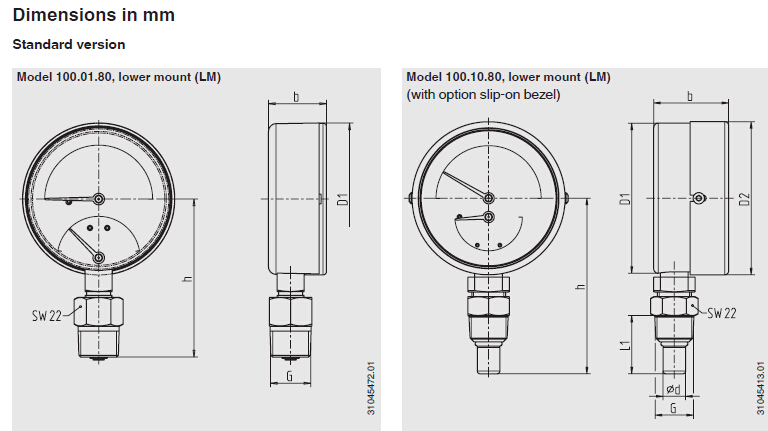

Nominal size in mm

63, 80

Accuracy class

■■ Pressure: 2.5 (EN 837-1)

■■ Temperature: ±2.5 °C

Scale ranges

■■ Pressure: 0 ... 1 to 0 ... 16 bar

■■ Temperature: 0 ... 100 to 0 ... 150 °C

Working ranges

■■ Pressure: Steady: 3/4 x full scale value

Fluctuating: 2/3 x full scale value

Short time: Full scale value
