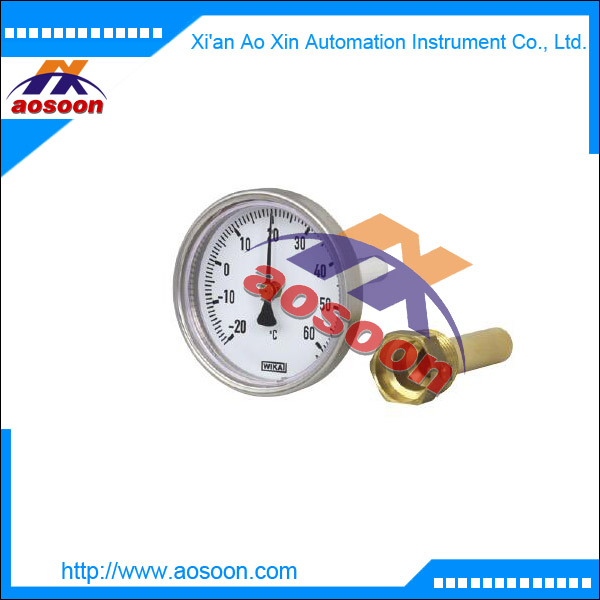

WIKA Bimetal Thermometer A50.20.63 WIKA A50.20.80 WIKA A50.20.100 WIKA A50.20.160

WIKA Bimetal Thermometer A50.20.63 WIKA A50.20.80 WIKA A50.20.100 WIKA A50.20.160

Applications

For heating facilities

Hot water boiler

Solar power systems

Special Features
Accuracy class 2

Nominal size 63, 80, 100 and 160

Scale ranges from -30 … 200 °C

Description

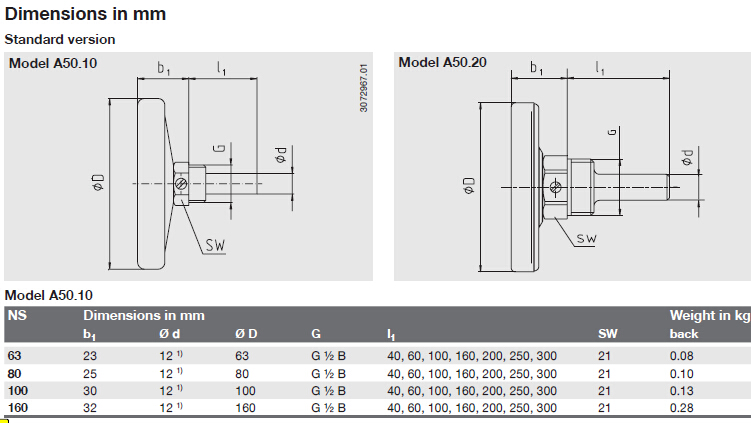

Nominal size in mm

63, 80, 100 and 160

Temperature element

Coiled bimetal

Design of connection

Stem removable, with set screw

Accuracy class

Class 2 per EN 13190

Pressure rating of thermowell

Approx. 6 bar

Location of stem

Centre back Case

Model A50.10: Aluminium

Model A50.20: Steel, zinc plated

Connection

Thermowell G ½ B, Cu-alloy

Stem

Model A50.10: Ø 9 mm Aluminium

160 °C or l1 > 200 mm Cu-alloy

Model A50.20: Ø 9 mm Cu-alloy

Thermowell

Length l1 = 40, 60, 100, 160, 200, 250, 300 mm,

Cu-alloy

Dial

Aluminium, white, lettering black

Pointer

Aluminium, black

Window

Acrylic plastic

Zero Adjustment

At bottom of stem
