UE J24-012 UE differential pressure switch

Overview

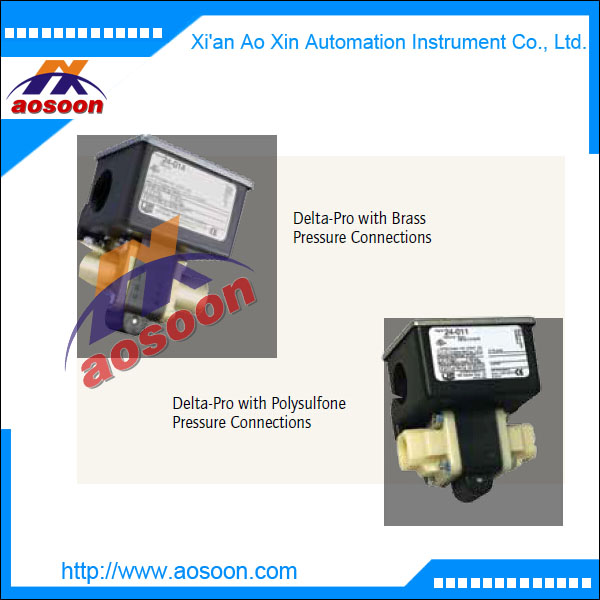

The cost-effective 24 Series Delta-Pro™ pressure, vacuum, and differential pressure switches offer a unique blend of compact size, excellent performance, and environmental protection. Available with brass or polysulfone pressure connections the Delta-Pro is ideal for applications involving hot or cool air, water, gas or oil. The precision snap-acting switch and sensitive diaphragms combine to provide a narrow deadband and repeatability of approximately ±1% of full scale range. A convenient, externally accessible adjustment screw is multi-turn to provide easy set point adjustability. The force-balanced design gives the Delta-Pro excellent vibration resistance.

Features
• UL listed and cUL certified. CE compliant to low voltage directive and pressure equipment directive
• Vacuum, Pressure or Differential pressure measurement
• 5 A @ 125/250 VAC SPDT snap-acting switch
• External stainless steel multi-turn adjusting screw
• OEM capabilities include external adjustment knob with or without reference scale


Storage Temperature  -20° to 180°F (-29° to 82°C)
Ambient Temperature 30° to 160°F (-1° to 71°C). Set point typically shifts less than ±0.6% of range for a 50°F (28°C) ambient temperature change; consult factory for special ratings
Max Media Temperature 200°F (93°C) at 100 psi working pressure
Shock Set point repeats after 15G, 10 millisecond duration
Vibration Set point repeats after 2.5G, 5-500 Hz
Enclosure Classification Complies with enclosure type 4 requirements with optional water tight conduit connector. Reinforced polyester body, stainless steel cover with gasket.
Set Point Repeatability Typically ± 1% of full scale range.
Switch Output One SPDT precision snap-acting micro-switch with mechanical contact life of 10 million cycles. Actual life depends on electrical load and cycle frequency
Electrical Rating Rated to 5 A resistive and 5 A inductive (75% PF) at 125 VAC and 250 VAC, 1/4
HP; 5 A resistive and 3 A inductive at 30 VDC and 0.5 A resistive and 0.25 inductive at 125 VDC. Gold flash over silver contacts for minimum loads of 5 mA at 6 VDC, 2mA at 12 VDC and 1 mA at 24 VDC
Weight 6.5 oz.
Electrical Connection 7/8" hole for optional 1/2" NPT conduit connector. Terminal block with screw
terminals. Max wire size 16 AWG
Pressure Connection Models 013-014, 019-022: 1/4" NPT (female) brass; models 011-012, 015-018: 1/4" NPS (female) FDA compliant* Udel® polysulfone, non-tapered to minimize connection stress with 1/4" NPT (male) fittings - max torque is 2-ft.lbs.
Mounting & Installation Surface mount with two screws through clearance holes, or mount by pressure connections
